Casagrande B175XP
Preço
Preço s/ consulta
6
Favorito
Partilhar
Guardar pesquisaImprimir
INFO
Linha de produto
Sondas de Extracção
Marca / modelo
Casagrande B175XP
Ano
2018
Horas de utilização
4.170 h
Localização da máquina
Middlesbrough, Cleveland
País
United Kingdom
Grau geral
1
2
3
4
5
Mascus ID
D44F3DE1
DETALHES
N°. de ref. de armazém
PF 40558
Informações de condição/garantia
All of our machines are checked and tested to ensure they are in full working condition when they reach your site – that is the Sigma guarantee.
País de fabrico
Colombia
Certificados
CE
Outras informaçőes

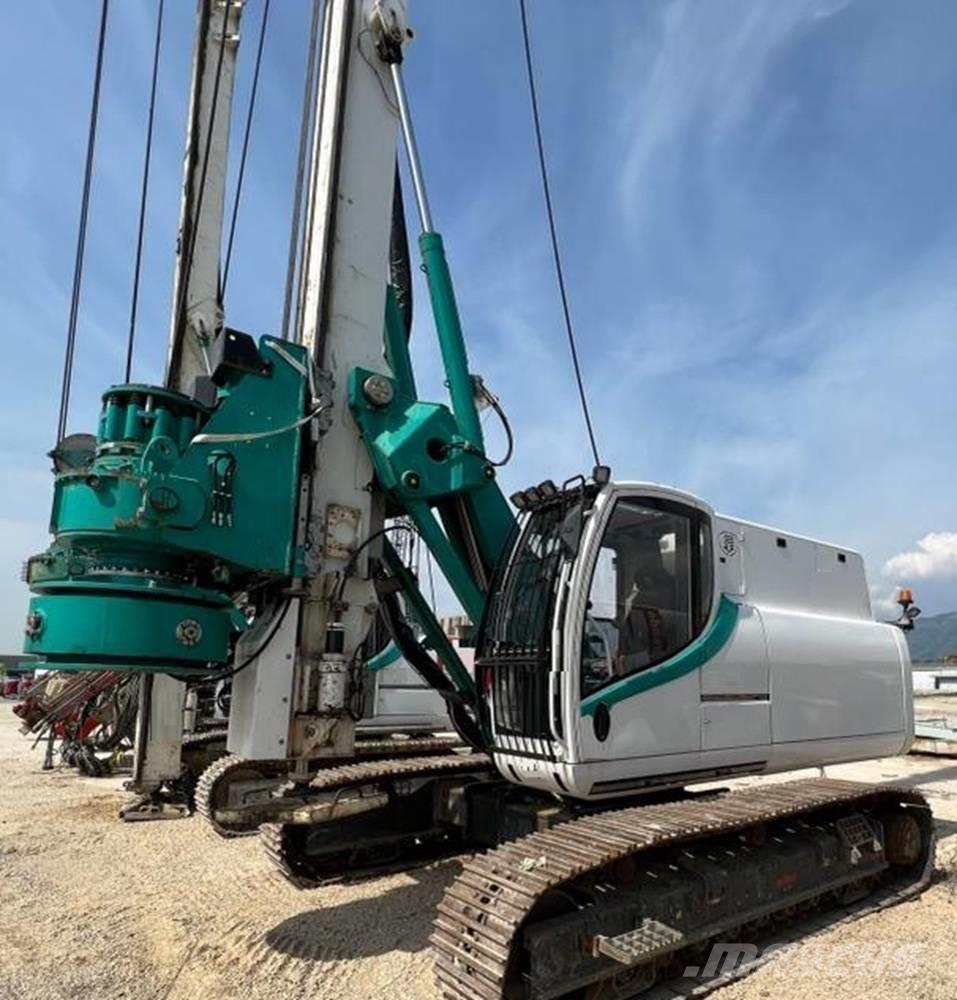

Piling rig with 4170 working hour
Capable of bored piles, CFA & FDP

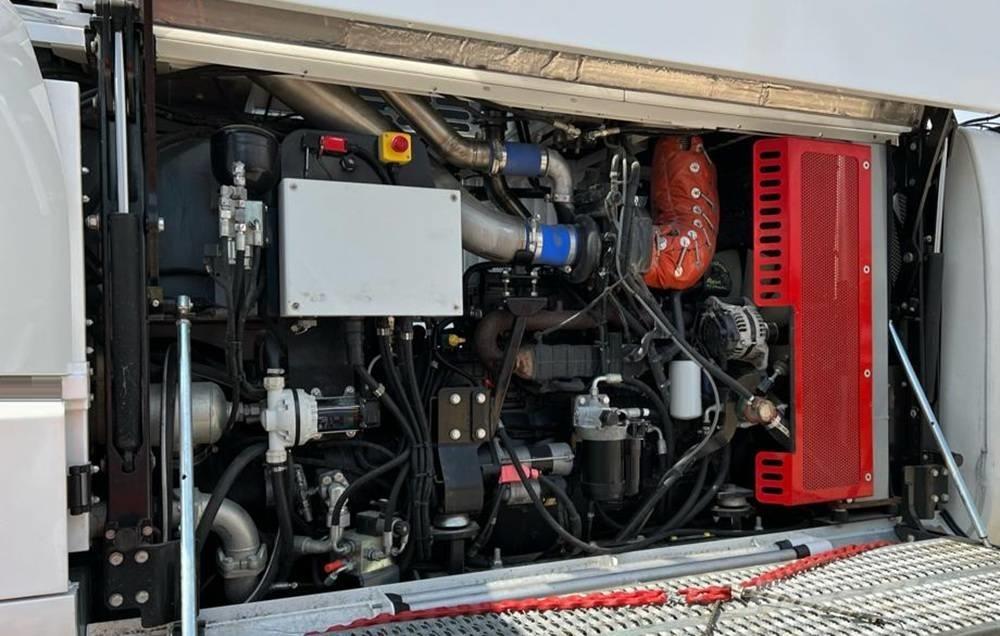

Engine – Cummins QSB 6.7 194kW @ 2200rpm (Stage 4 / Tier 4F)
Undercarriage 2500-3700mm (closed-open)
Rotary head – H18 (max torque 175kNm with cardan joint)
Winches – 160kN main, 70kN auxiliary
Pull down winch – Crowd/extraction force 280kN, stroke 12,300mm
Kelly bar – 4 x 7.5m interlocking (kelly box 130x130mm, diameter 355mm)
Rapid CFA – Special adapter for drive sleeve, wedge for jib, female half joint for augers, 1.2m mast extension, swan neck for concrete pipes, short drive sleeve for CFA complete with reaction bar & inner reduction, 6m long drive sleeve for CFA with reaction bar & inner reduction, lower centering guide for CFA-R.
CE Certified
