Comet 22/2/10

Preço

Preço s/ consulta

Compnay LOGO
Images23Videos3

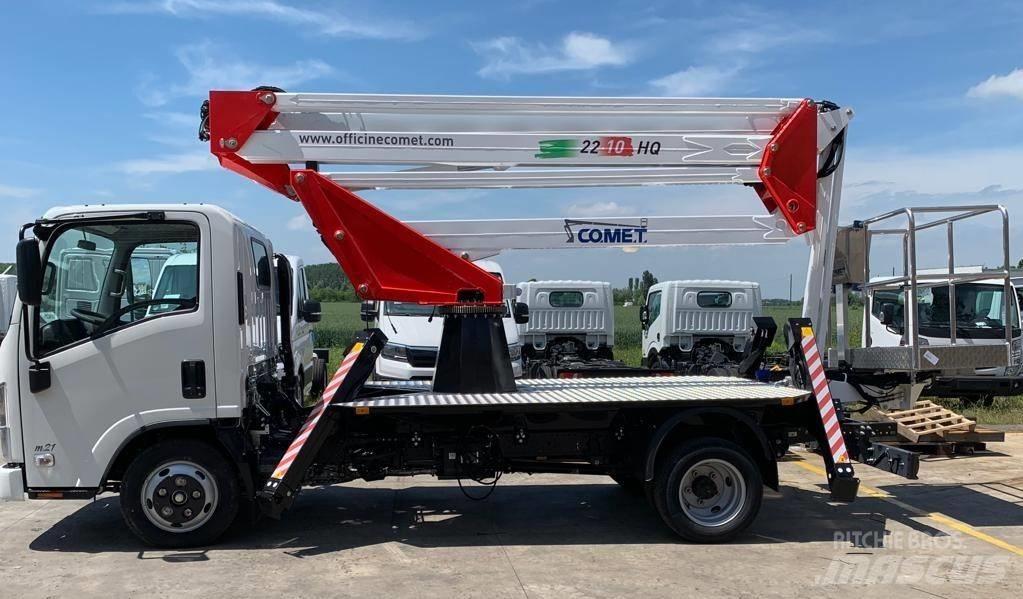

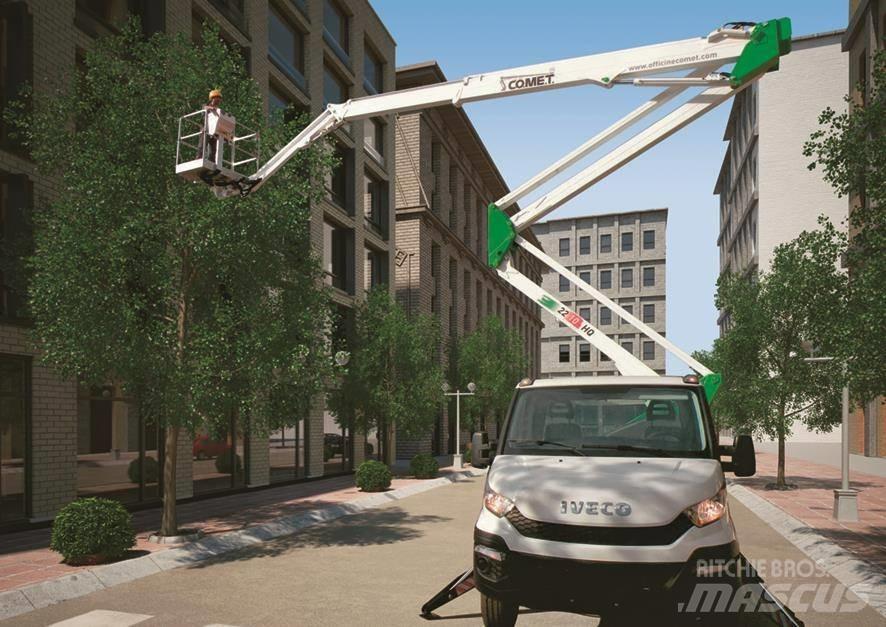

Comet 22/2/10 Plataformas aéreas montadas em camião
Comet 22/2/10 Plataformas aéreas montadas em camião
FavoriteFavorito
sharePartilhar
Save searchGuardar pesquisa
Imprimir

INFO

Linha de produto
Plataformas aéreas montadas em camião
Marca / modelo
Comet 22/2/10
Ano
2025
Condição
Novo/Nunca usado
Localização da máquina
Castello D'Argile, Bologna
País
Italy
Grau geral
1
2
3
4
5
Mascus ID
91DBF3E2

DETALHES

Altura de trabalho
2.200 cm
Tipo de accionamento
Diesel
Tipo plataforma
Articulada
Máx alcance horizontal
1.000 cm
Classe de emissăo
Estágio VI / Nível VI
Peso bruto
3.500 kg
Max. capacidade de elevaçăo
200 kg
Cor Original
Bianco
Marca da Substrutura
Comet
País de fabrico
Italy
Condições de entrega
EXW
Certificados
CE
Documentos
NEW-EUROSKY-HQ-18-22-BINGRU.pdf77FT00005-SCHEDA-TECNICA-NEW-ESK-22-2-10-JIB-HQ-ISUZU-M21-P2750.pdf77FT00004-SCHEDA-TECNICA-NEW-EUROSKY-22-2-10-HQ-JIB-SU-IVECO-DAILY-35S-P3450.pdf
Outras informaçőes
AERIAL WORK PLATFORM 22 M WITH JIB OF 35 CWT TRUCK Working height 21.5 m, Jib side 10 m, capacity 200 kg in the cage (no. 2 persons) 360 ° continuous rotation, low pressure hydraulic controls 100% No need for limiting lateral range (100% SAFE): the operator can move throughout the workspace without disruption while respecting the maximum capacity of the spacecraft of 200 kg Dimensions spacecraft aluminum: 1400x700x1100 mm Hydraulic Rotation ship: 90 ° + 90 °, 100% hydraulic controls that enable two movements at the same time, self-leveling of the spacecraft continuously and gradually with independent hydraulic circuit, on and off the vehicle engine from the spacecraft, Indicators of early warning and overload alarm in the cage, lamp centering arm in the rest position, Socket 230 V plug socket in the cage with anti-collision system for tower arm-cabin order not to hurt the car side to side or vertically moving the arm (buzzer and stop). Anti-collision spacecraft-not to knock the jib arm while rotating to the right or left side of the spacecraft (buzzer and stop) .Celle load: detection device of the load in the cage consisted of. 3 load cells and management card with redundant control of operation, visual and audible alarm-locking movement in case of overload All on Nissan Cabstar 35 q.li (pat B) other information and data sheets on the siteMostrar mais

Bini Gru

Via Aldo Moro,62 40050 Castello D'Argile Bologna Italy
