Geotec ROTOMAX Li

Preço

Preço s/ consulta

Images11Videos1

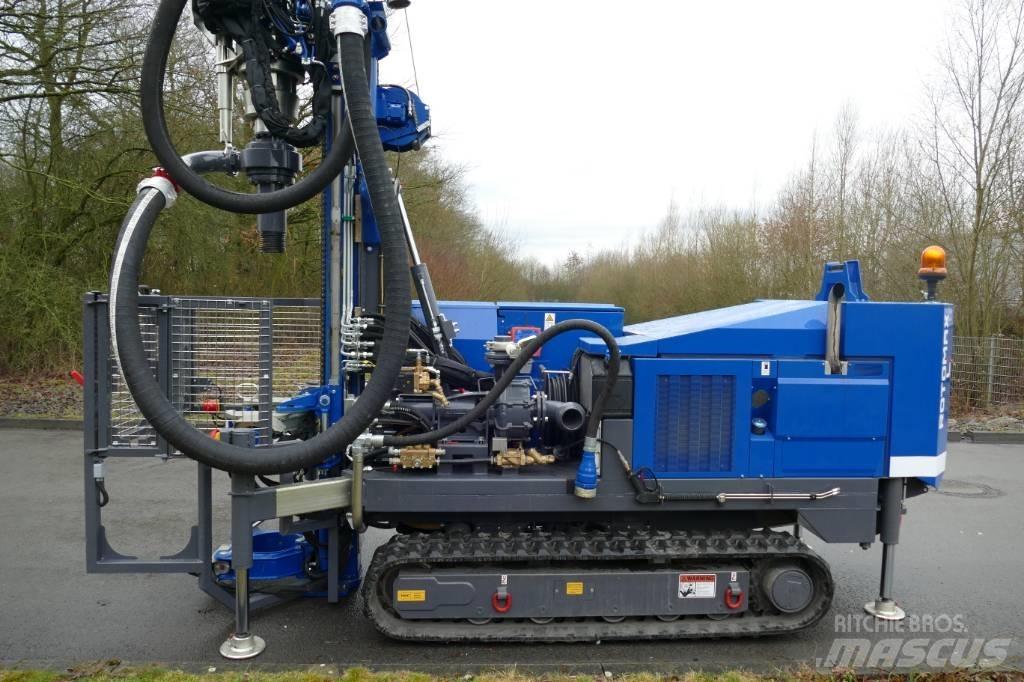

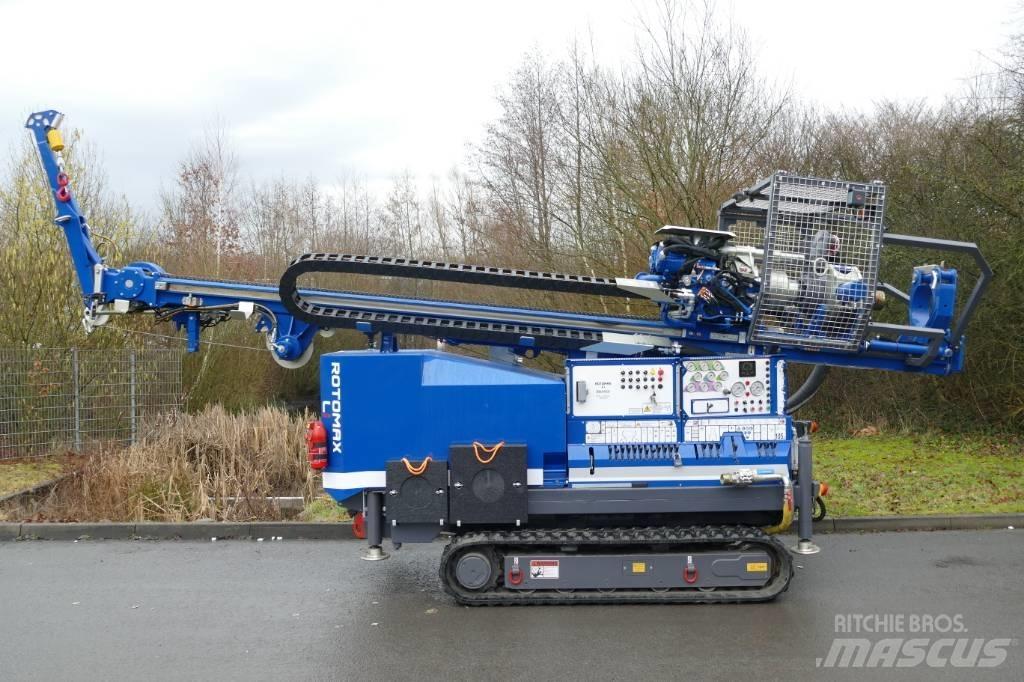

Geotec ROTOMAX Li Perfuradoras de superfície
Geotec ROTOMAX Li Perfuradoras de superfície
FavoriteFavorito
sharePartilhar
Save searchGuardar pesquisa
Imprimir

INFO

Linha de produto
Perfuradoras de superfície
Marca / modelo
Geotec ROTOMAX Li
Ano
2022
Condição
Novo/Nunca usado
Localização da máquina
Nordkirchen
País
Germany
Grau geral
1
2
3
4
5
Mascus ID
B88F05AC

DETALHES

Última inspeção
2022
Histórico de serviço completo
Sim
Motor
136KM
Fabricante do Motor
PERKINS
Classe de emissăo
Stage V
Sistema de arrefecimento
Água
Mecanismo de alimentaçăo
Cilindro
Horas de percussăo
0
Horas de percussão
0
Marca do manipulador de varas
GEOTEC
Marca do mecanismo de alimentaçăo
GEOTEC
Marca dos rastos
GEOTEC
Tipo do veículo transportador
De rastos
Informações de condição/garantia
1000 Hours / 1 Year
Peso em transporte
6.000 kg
Dimensőes em transporte (CxLxA)
4000 x 1600 x 2400 mm
Estado dos pneus dianteiros
100
Estado dos pneus traseiros
100
Condições de entrega
EXW
Outras informaçőes
EVERY MACHINE LEAVING OUR FACTORY - HAS DIFFERENT EQUIPMENT CONFIGURATIONS! BELOW YOU WILL FIND AN EXAMPLE OFFER! IF YOU HAVE QUESTION, PLEASE CONTACT US! WE ALSO HELP IN FINANCING! Drive: 100 kW (136 HP) 4-cylinder turbo diesel engine with Stage 5 and direct drive hydraulic pumps, pressure filter, oil cooler, bypass filter for the hydraulic circuit and AdBlue. Hydraulic system: Dual-circuit, load-independent primary hydraulics (1x load-responsive, 1x permanent), proportional, partially direct or remote controlled Control Valves: Main Control Valves - Auxiliary control blocks partially controlled manually Pressure indications: system pressure of the hydraulic circuits, supply from the purge pressure Drive type: gear with feed, disc brake Speed: Normal and rapid feed (2 speeds) (Max. 5 possible) Drilling pressure: max. 2,500 kg Lifting: max. 9,000 kg Stroke: 4,200 mm Drilling gear: Vibration-stable drilling gear with proportional hydraulic motor. Speed ​​range: 0 - 350 min-1 Torque range: 0 - 10,000 Nm Speeds and torques are set with the potentiometer on the control panel. Drilling pipes; GT95 (Customization possible) Maximum mounting diameter on the head: 178 mm (with more adapter) Grease lubrication system drilling gear (active cylinders) Clamping head Articulated rollers Sideshift Middle Pipe Clamp: Clamping range: Ø80 mm - Ø324 mm Swivel angle: 30 ° Breakaway torque: 20 kN Lifting force: 120 kN Lifting height: 400 mm Lubrication: Central lubrication beam Specifications are subject to change. Each machine is individually equipped.Mostrar mais

GEOTEC BOHRTECHNIK

Aspastrasse 26 59394 Nordkirchen Nordrhein-Westfalen Germany
