Histórico de serviço completo
Sim
Max. capacidade de elevaçăo
2.820 kg
Max lifting capacity at end of jib
150 kg
Fabricante do Motor
Toshiba
Hook height of crane - horizontal jib
820.500 cm
Dimensőes em transporte (CxLxA)
2800 x 750 x 1470 mm
Informações de condição/garantia
Yes, 2 year
Estado dos pneus dianteiros
100
Estado dos pneus traseiros
100
Certificados
EPA, CE, ANSI
Outras informaçőes

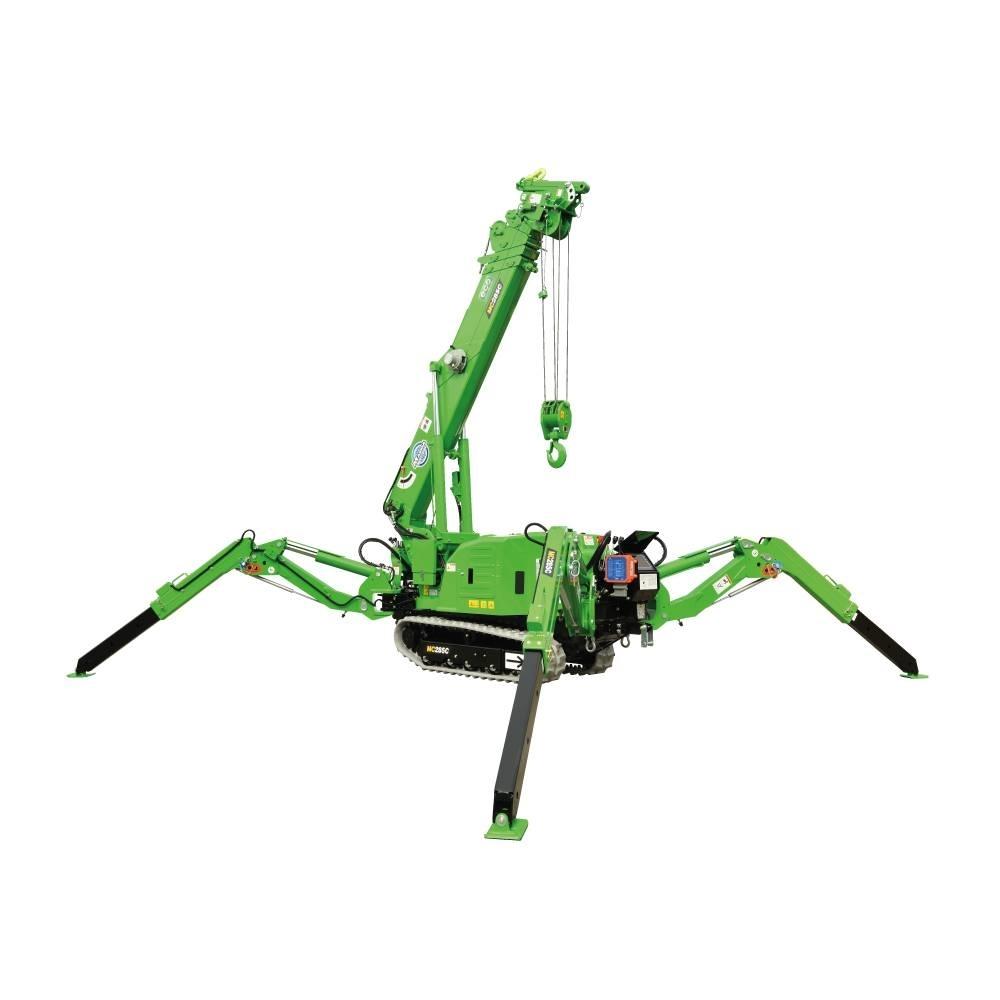

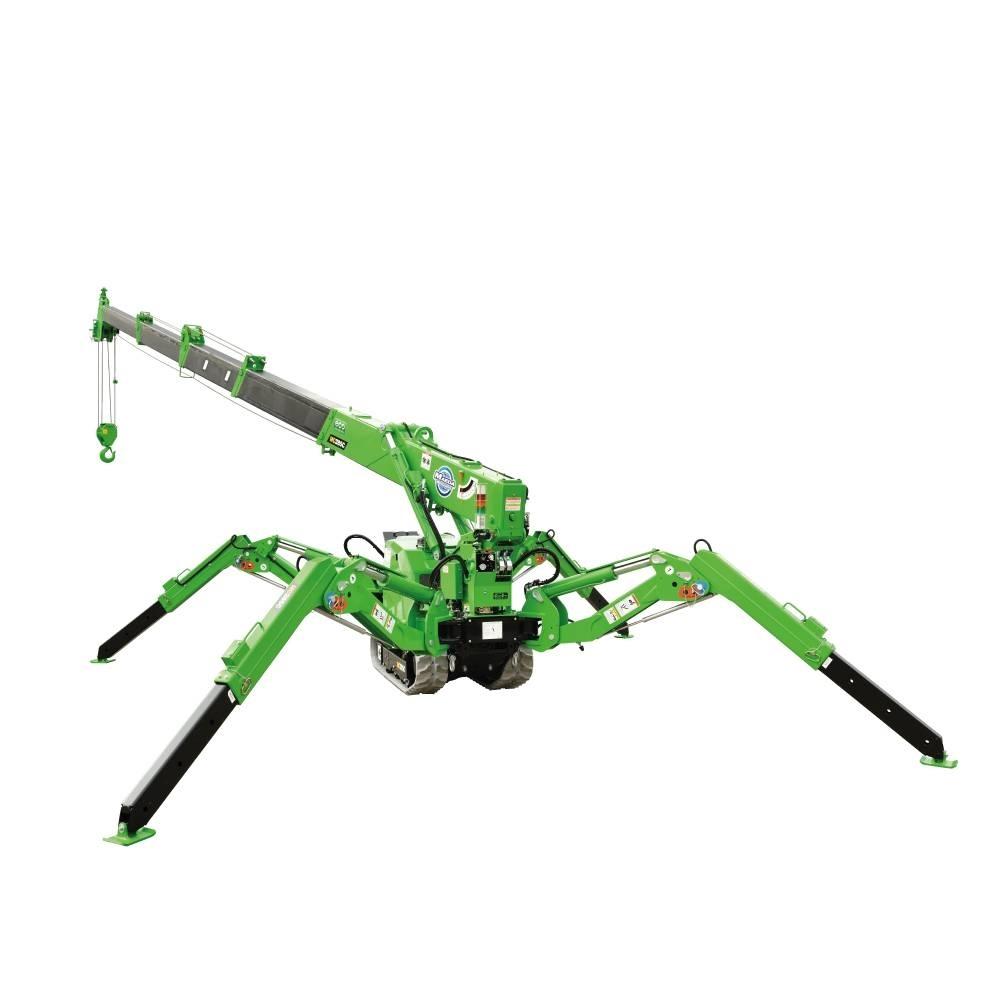

The MC285CB-3 is the very first fully electric powered mini crane from Maeda. With absolute zero emissions it can safely be used in sensitive indoor environments, and when regulations need to be achieved. Improved energy efficiency and productivity as well as reduced ventilation needs and maintenance costs are some of the benefits beyond the clear environmental aspect. With a lithium-ion battery, this crane can be operated continuously for over 9 hours, and be fully charged in only 3.5 hours. On top of that, continuous operation is possible while charging which facilitates use. The crane capacity and operating speeds have not been compromised since it equals the regular MC285C-3. The battery-operated MC285CB-3 has a maximum capacity of 2.82 ton x 1.4m. Maximum lifting height on the ground is 8.7m and the maximum working radius is 8.205m x 0.15t. All this is packed in this innovative piece of engineering that only weighs in at 1995kg. As always with products from Maeda we can expect the highest quality and reliability together with great guarantees.
Crane Capacity – 2.82t x 1.4m
Max. Working Radius – 8.205m x 0.15t
Max. Lifting Height – 8.7m
Max. Reach Below Ground – 10.1m (4 falls) / 40.4m (single fall)
Max. Reach Below Ground (Aux Winch) – 100m (single fall)
Outrigger Max. Extended Width – (Lat.) 4,782mm x (Fr.) 4,718mm x (Re.) 3,990mm
Travel Speed – 0-2.0km/h
Travel Ground Pressure – 50.2kpa (0.512kgf/cm2)
Battery Type – Lithium Titanate Battery
5-hour rate capacity – DC55V – 135Ah
Input Voltage / current – Single phase AC200V / 16A, AC100V / 15A
Charging time (with AC-200V) – 80% : 2h 20min / 100% : 3h 30min
Continuous operating time (crane) – 9h 30 min (based on Maeda’s assumed cycle)
Charging during operation – Available
Options – Black rubber tracks, Single fall hook, 850kg searcher hook.
Dimensions – 2,800mm (L) x 750mm (W) x 1,470mm (H)
Machine Weight – 1,995kgMostrar mais
