Horyong BMK-403 ECO

Preço

Compnay LOGO
Images10
Horyong BMK-403 ECO Mini gruas
Horyong BMK-403 ECO Mini gruas
Horyong BMK-403 ECO Mini gruas
FavoriteFavorito
sharePartilhar
Save searchGuardar pesquisa
Imprimir

INFO

Linha de produto
Mini gruas
Marca / modelo
Horyong BMK-403 ECO
Ano
2018
Horas de utilização
287 h
Localização da máquina
Duisburg, Nordrhein-Westfalen
País
Germany
Grau geral
1
2
3
4
5
Mascus ID
359B22F4

PREÇO

Escolha a moeda

DETALHES

Peso bruto
4.019 kg
Max. capacidade de elevaçăo
4.000 kg
Boom length
680 cm
Jib length of crane
680 cm
Fabricante do Motor
Akku
Altura de elevaçăo
1.020 cm
Hook height of crane - horizontal jib
840 cm
Hook height of crane - luffed jib
221 cm
Dimensőes em transporte (CxLxA)
435000 x 157000 x 205000 mm
Marca do pneu
NM-Bereifung
Estado dos pneus dianteiros
100%
Estado dos pneus traseiros
100%
Condições de entrega
FCA, CFR, EXW
Certificados
CE
Acessórios
Blocos de gancho
Outras informaçőes

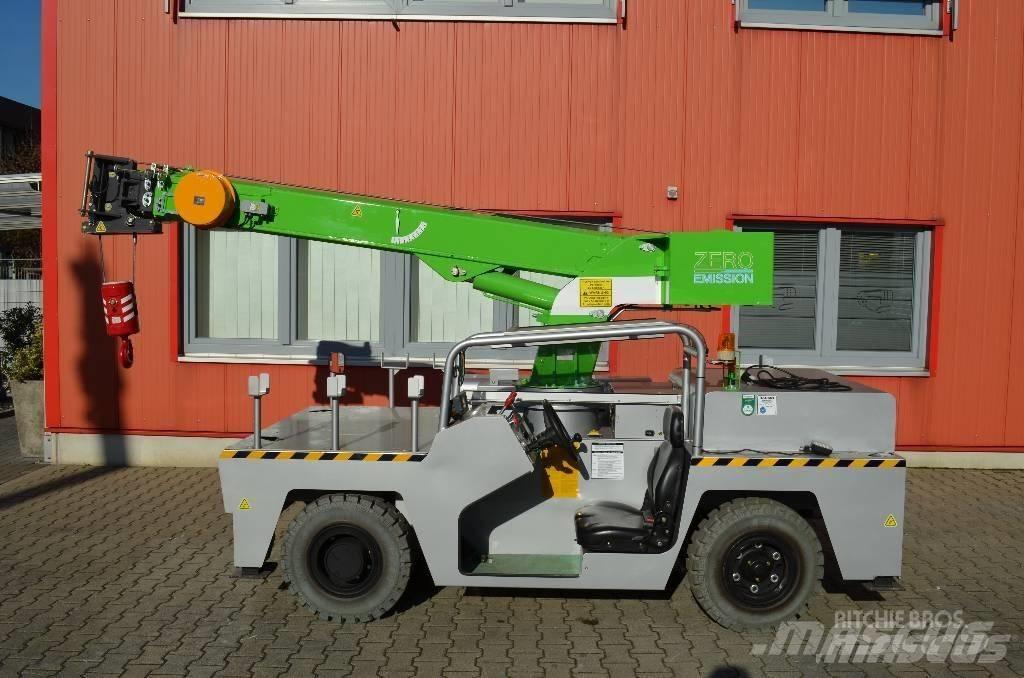

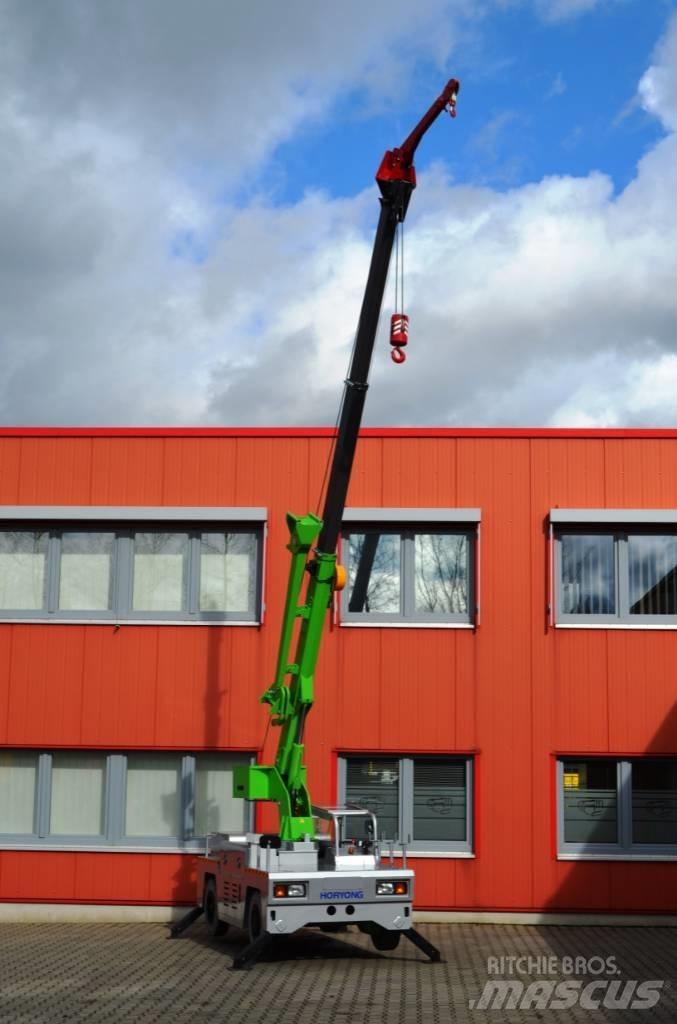

Battery industrial yard crane HORYONG BMK-403 ECO, used unit battery drive, CE 2018, approx. 287 working hours Pick+carry and Carry deck TECHNICAL DETAILS: max. lifting capacity 4,2 t x 0,9 m max. load pick + carry 2,9 t max. load on carry deck 2,5 t max. working range 6,7 m (8,2 m with fly jib) max. hook height: 8,41 m (10,2 m with fly jib) DIMENSIONS & WEIGHT length 4.350 mm width 1.570 mm, height 2.050 mm total weight of crane: 4.019 kg outrigger base: 2.330 mm x 3.330 mm CRANE EQUIPMENT: telescopic main boom 3,07 bis 6,8 m, fully hydraulic, 3 sections fly jib with sheave head 2,2 m, max. lifting capacity 1,2 t, angel 0°, 25°, 50° one winch 360° slewing range unlimited Electronical Safe Load Indicator System Rayco Wylie i4500 working range limiter optical and voice warning system working light, emergency stop, round-about light hook block 1-sheave, max. 4,0 t lifting capacity drive 4 x 2 x 2 Carry-Deck for goods, size 1,55 m², max. load 2,9 t 3 pieces pipe holders / transport holders 4-point hydraulic outriggers, front and rear electric engine with batteries, 2x 10 kW, 72V / 300 Ah, rechargable batteries, integrated battery charger max. speed of crane is 6 km/h 4x non marking tires open crane driver cabin with lattice protection roof, operation panel The electric yard crane crane is in good working condition and can be ideally used inside hall areas where exhausts are vorbidden, The unit is immediately available ex our yard and can also be rented for jobsites in Germany.Mostrar mais

Mini & Mobile Cranes Körner GmbH

Alte Kaserne 23 47249 Duisburg Nordrhein-Westfalen Germany
