INFO

Linha de produto
Miniescavadeiras
Marca / modelo

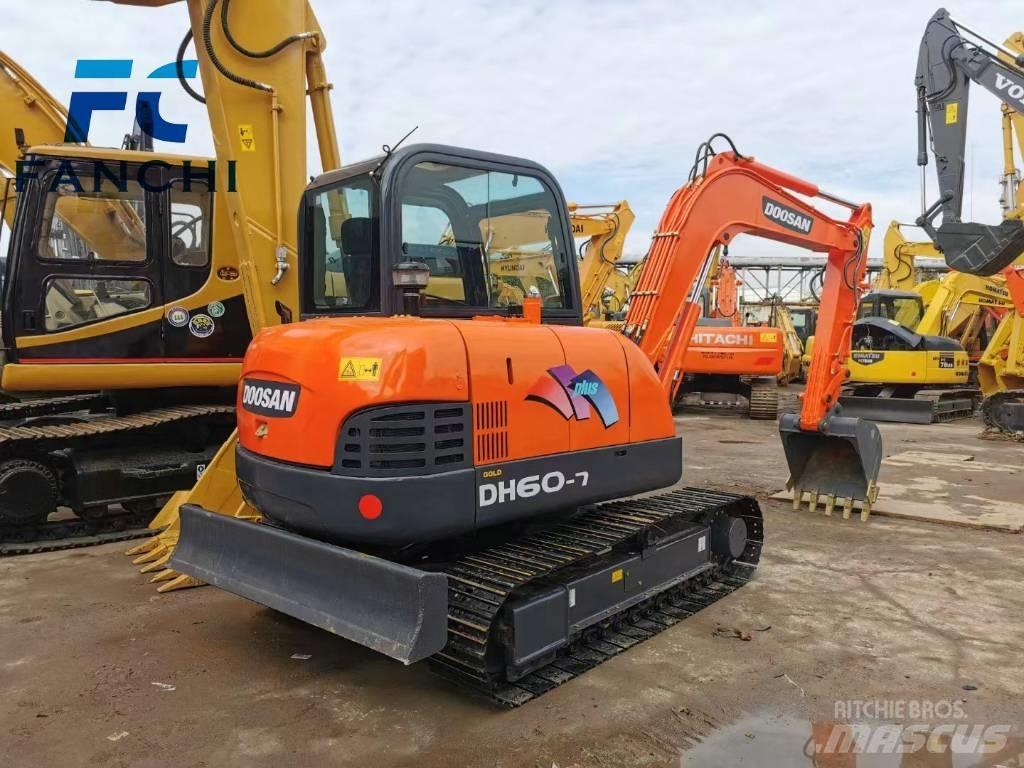

Doosan DH 60
Ano
2023
Horas de utilização
600 h
País
China
Grau geral
1
2
3
4
5
Mascus ID
86AB9175

PREÇO

Escolha a moeda

DETALHES

Número de proprietários anteriores
1
Condição do chassi
good
Peso bruto
6.000 kg
Largura Rastro
400 mm
Capacidade do balde
2 m3
Dimensőes em transporte (CxLxA)
585018802.575 m
Cor Original
YELLOW
Dipper / stick length
1.990 mm

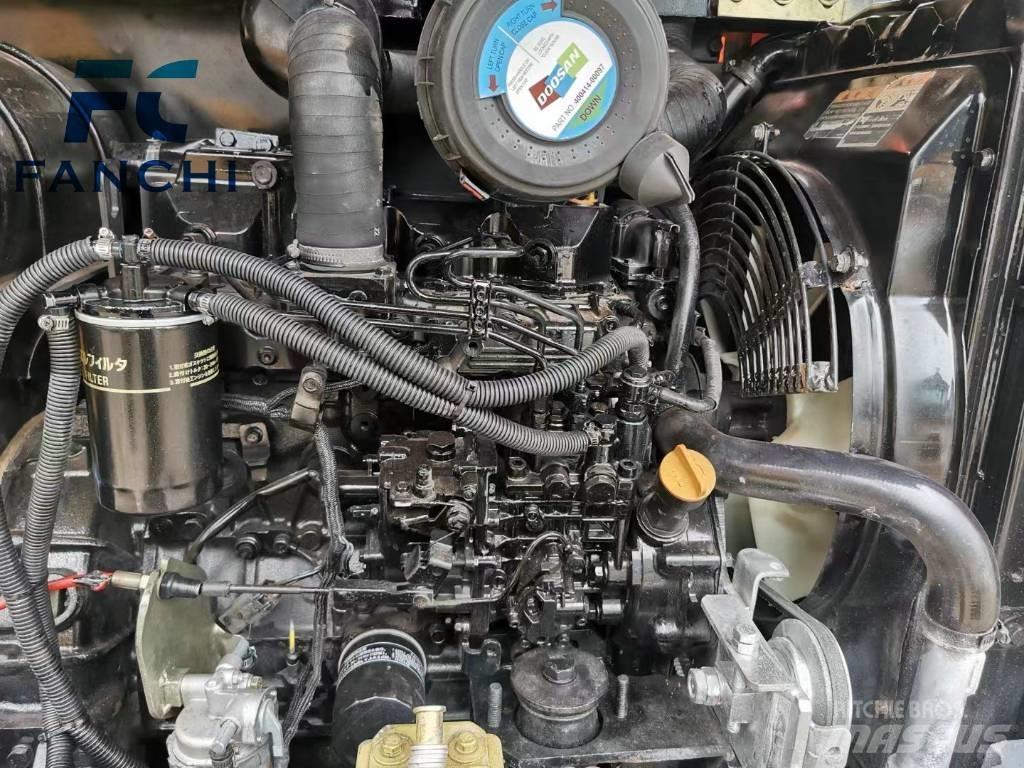

Motor
洋马 4TNV94L
Potência do motor
38,1 kW (51,8 cv)
Fabricante do Motor
JAPAN
Informações de condição/garantia
good
País de fabrico
Japan
Condições de entrega
FOB, CIF, EXW
Certificados
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME
Implementos
All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.
Acessórios
Auto / hydraulic quick coupler
circuito de martelo
caixa fios twig
GPS
Mostrar mais
Outras informaçőes
Overall Machine Parameters: - Total operating weight of the whole machine: 5550 kg - Bucket capacity: 0.09 - 0.2 m³ - Boom length: 3000 mm - Arm length: 1600 mm - Total transport length: 5850 mm - Total transport width: 1880 mm - Total transport height: 2575 mm - Total height of the cab: 2575 mm - Width of the upper carriage: 1885 mm - Track ground contact length: 1990 mm - Total track length: 2540 mm - Track shoe width: 400 mm - Total track width: 1880 mm - Track gauge: 1480 mm - Minimum ground clearance: 350 mm - Rear swing radius: 1650 mm Performance Parameters: - Bucket digging force: 37.7 kN - Arm digging force: 28.4 kN - Maximum digging radius: 6150 mm - Maximum digging depth: 3820 mm - Maximum digging height: 5760 mm - Maximum unloading height: 4030 mm Engine Parameters: - Engine model: Yanmar 4TNV94L - Rated power: 38.1 kW/2200 rpm - Number of cylinders: 4 - Cooling method: Water cooling - Working mode: Air-to-air intercooling Hydraulic System Parameters: - Main pump type: Variable axial piston pump × 2 - Maximum flow rate of the main pump: 55×2 L/min - Working hydraulic circuit pressure: 20.6 MPa - Travel hydraulic circuit pressure: 20.6 MPa - Swing hydraulic circuit pressure: 21.6 MPa - Flow rate of the pilot pump: 9.9 L/minMostrar mais

Shanghai FanChi Machinery trading Co., LTD

hongmei Road 200000 Minhang Shanghai 上海 China
