Linha de produto
Martelos de empilhamento hidráulico
Marca / modelo
BSP HH6 LD
Ano
1998
Localização da máquina
Etten Leur, Noord-Brabant
País
Netherlands
Grau geral
1
2
3
4
5
Mascus ID
3E85A9F3

PREÇO

Escolha a moeda

DETALHES

Última inspeção
2024-10-14
Número de proprietários anteriores
1
Peso em transporte
8.500 kg
Dimensőes em transporte (CxLxA)
5500 x 740 x 1110 mm
Informações de condição/garantia
warranty expired
País de fabrico
United Kingdom
Condições de entrega
EXW
Implementos
Leader guides for 720mm wide leader mast Hydraulic hose bundle Hoisting device for lifting the hammer Electronic cable Control box Drive cap for 30x30cm precast pile No manifold included
Outras informaçőes

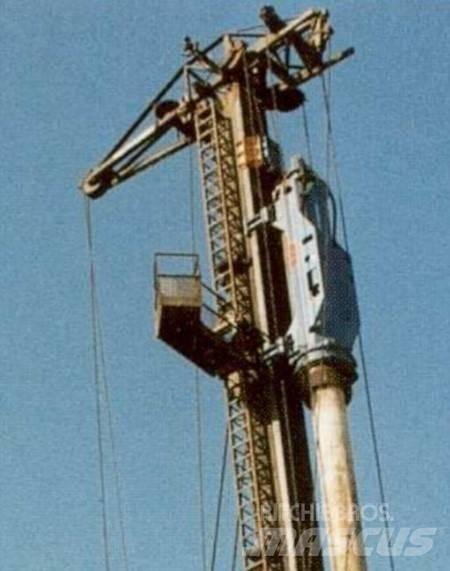

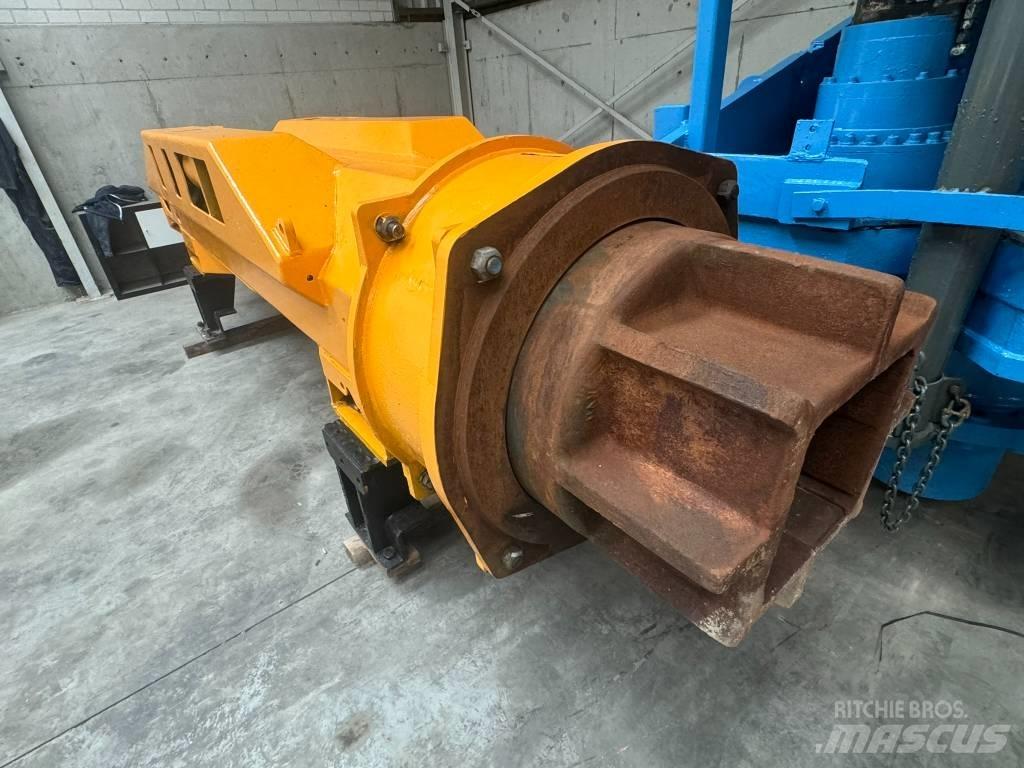

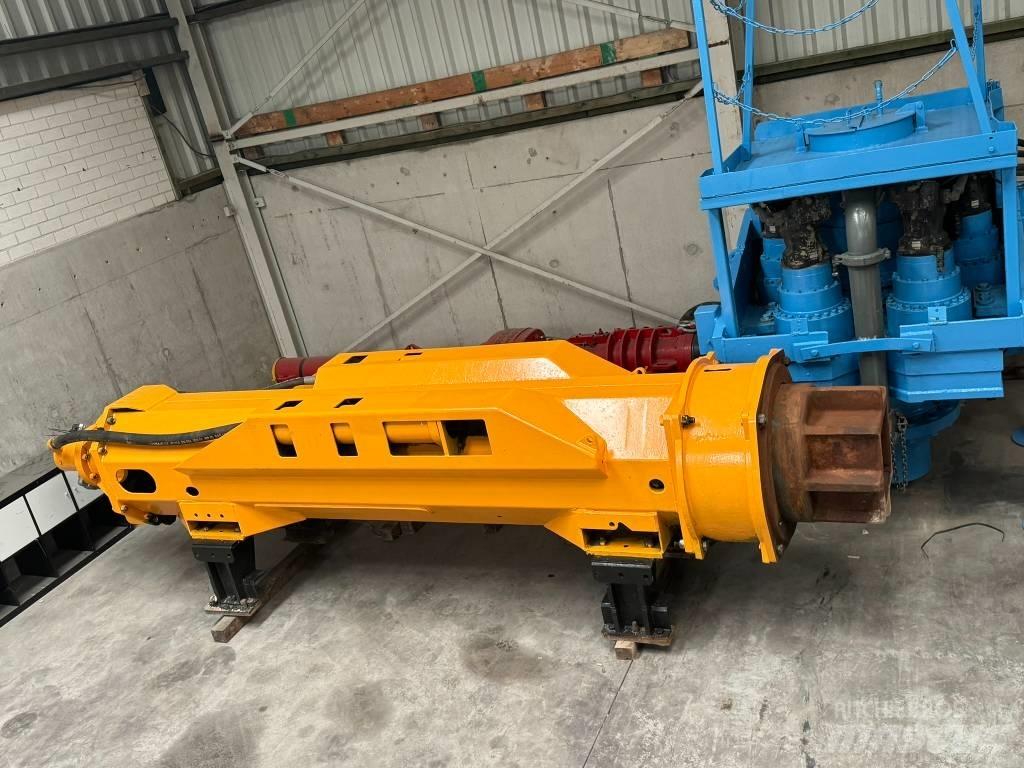

The BSP HH 6LH is a hydraulic impact hammer which was especially designed for leader guided pile driving. The hammer has a very smart design which makes it short and therefor makes it suitable to drive longer piles than with most other hammers. This hammer is suitable to be used with the drive cap system of van Hattem. It can be used to drive steel tubes but the hammer is also suitable for driving precast concrete piles. Specifications: Max. energy 71 kNm Max. stroke 1200 mm Length is 5500 mm Max. blow rate at 1.200mm stroke is 40 blows/min. Max. oil flow 180 ltr/min Max. pressure: 250 bar Operational weight 8500 kgMostrar mais
