Tipo plataforma
Telescópica
Max. capacidade de elevaçăo
49.895 kg
Jib length of crane
649 cm
Motor de transporte
Cummins QSB4.5 (Tier IV Final) Diesel Engine
Tipo do veículo transportador
De rastos
Outras informaçőes

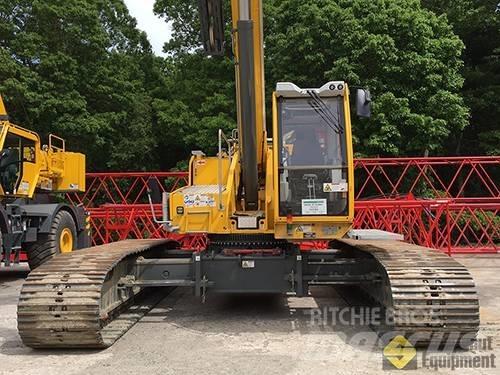

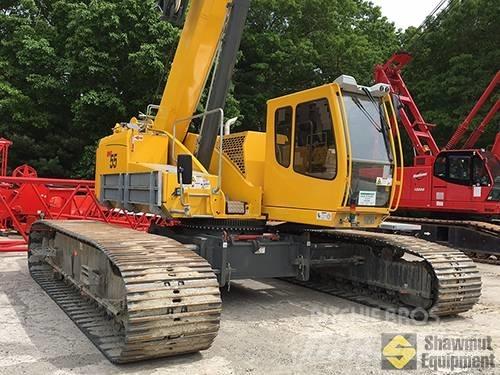

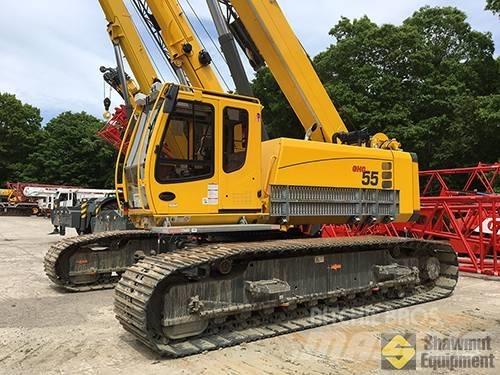

Used 2017 Grove GHC55, S/N: 55.5.210, 55 Ton Capacity Telescopic Boom Crawler Crane
Specifications:
- 30’ 10” – 99’ 9” 4-Section Full Power Main Boom
- 21’ 4” Offsettable Swingaway Extension
- Swingaway Offsetts at 0 and 40 Degrees
- 21’ 4” Fly Jib Extension
- Auxiliary Boom Nose
- Five Sheave Main Boom Nose
- Main & Auxiliary Hoists
- Drum Rotation Indicators
- Operator’s Cab Tilts to 15 Degrees
- Ergonomic Control Panels
- Load Sensing Electric Dual Axis Control Joysticks
- Air Conditioning for Operator’s Cab
- Pole Claw Preparation with Tool Circuit
- 360 Degree Continuous Swing
- Swing Barrier Protection
- Pinion Lubrication for Slewing Gear w/ Pump
- Cummins QSB4.5 (Tier IV Final) Diesel Engine
- 19,621 Lbs Total Counterweight
- Hydraulically Extendable Undercarriage
- Maintenance-Free B-6 Crawlers (59 Track Shoes)
- 36” Triple-Bar Track Shoes
- 2-Stage Track Motors for High Travel Speed
- “Graphical RCL” Load Moment Indicator
- External RCL Light Bar
- Anti Two Block System
- One Rotating Beacon Light on Top of Cab
- Removable Catwalk on Both Sides of S/S
- 38.5 Ton 3-Sheave Hookblock
- 5.5 Ton Headache Ball
- Engine Hours: Approx. 1,913 Hours (11/10/23)Mostrar mais
