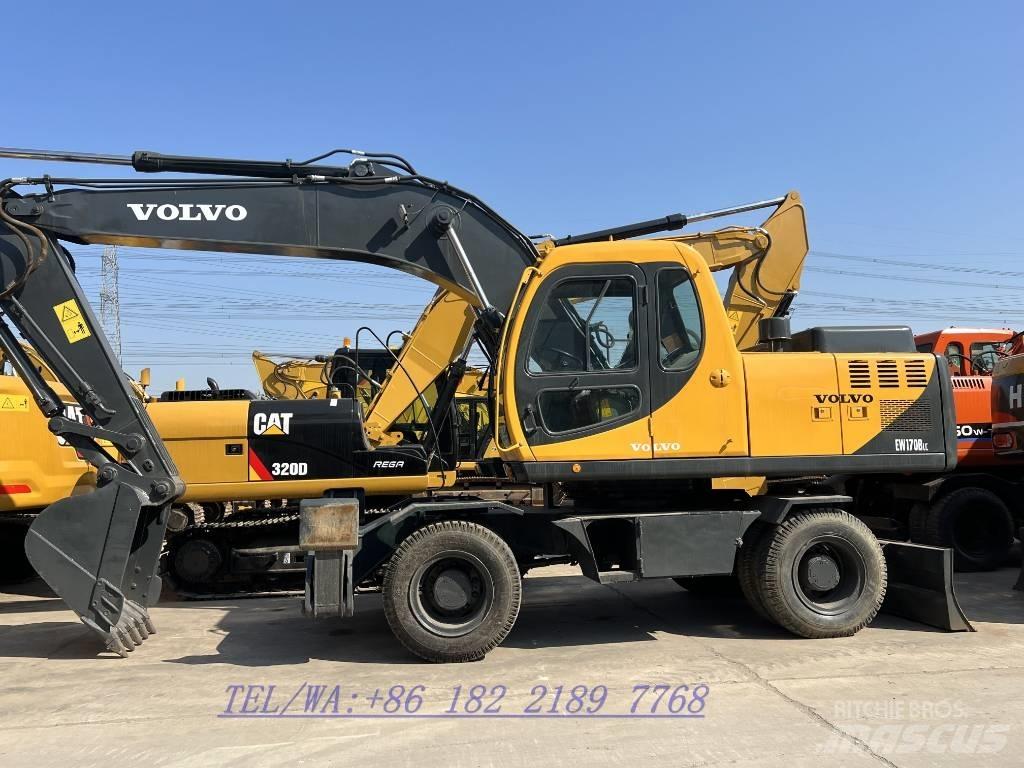

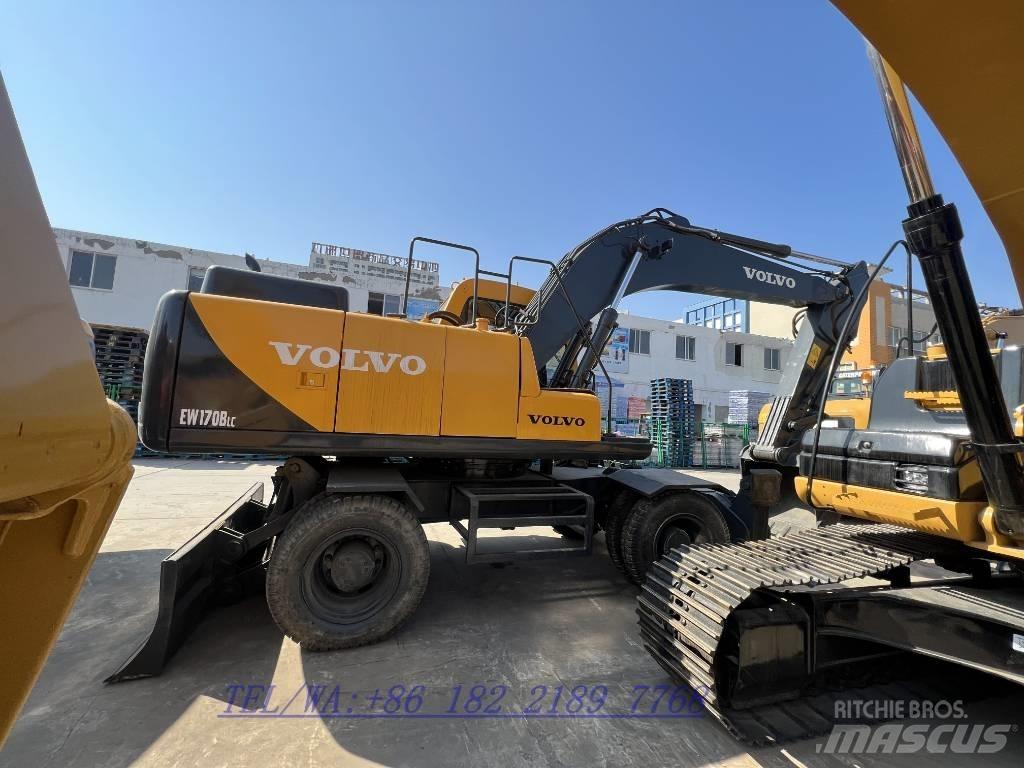

Volvo EW 170

General Specifications Operating Weight: 16,800 – 18,500 kg (varies with configuration) Engine: Volvo D4H (Tier 4 Final / Stage IV compliant) Engine Power: 129 kW (173 hp) Max. Travel Speed: 40 km/h (25 mph) Fuel Tank Capacity: 240 L (63.4 US gal) Digging Performance Max. Digging Depth: ~6.4 m (21 ft) Max. Reach at Ground Level: ~9.7 m (31.8 ft) Bucket Digging Force: ~95 kN (Standard bucket) Arm Digging Force: ~62 kN Hydraulic System Hydraulic Pump Flow: 2 x 130 L/min (34.3 US gal/min) System Pressure: 350 bar (5,076 psi) Dimensions Transport Length: ~8.6 m (28.2 ft) Transport Width: ~2.55 m (8.4 ft) Transport Height: ~3.45 m (11.3 ft) Stability & Maneuverability
