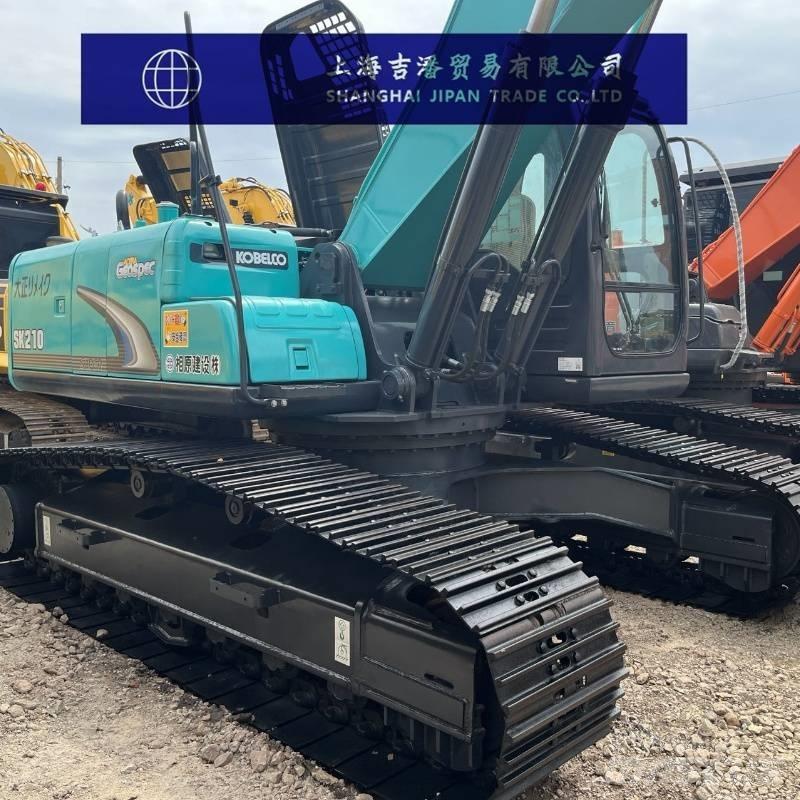

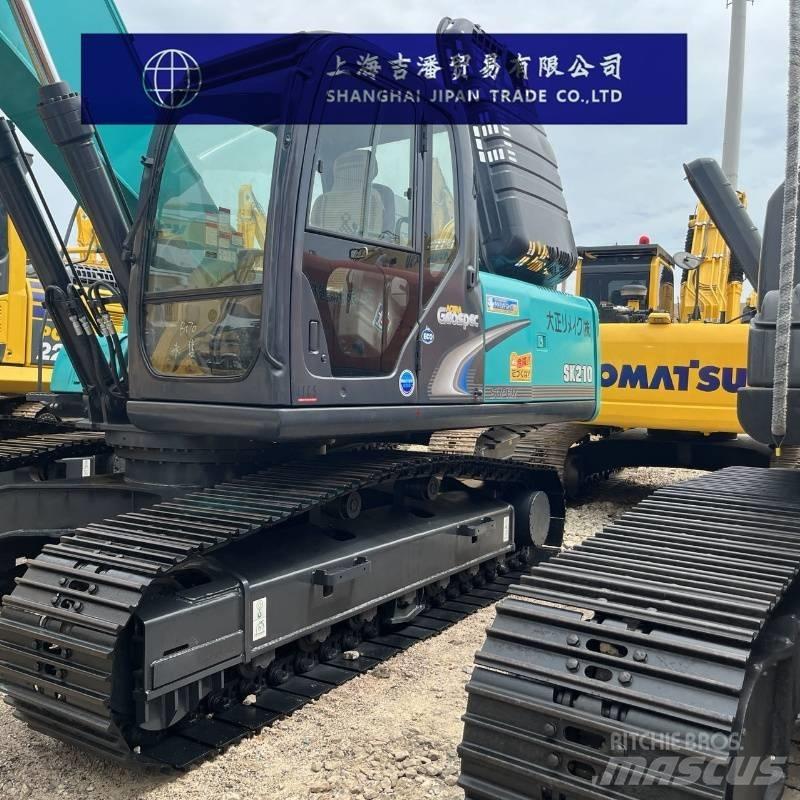

Kobelco SK 210

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Specification Power, traditional power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)20 The working weight of the entire machine (kg) is 21,200-21,900 Bucket capacity (m³)1 Performance Rotational speed (rpm)12.5 Walking speed (km/h)6.0/3.6 Climbing ability (%)70(35°) Grounding specific pressure (Kpa)34-44 {0.35-0.45} Maximum tractive force (kN)229{23,300} Power system Engine model: Hino J05E Rated power (kw/rpm) : 114/2000 Displacement (L) : 5.123 The cooling method is water cooling The working mode is direct injection, water-cooled, four-stroke, turbocharged, and built-in intercooler Oil capacity Fuel tank (L)370 Hydraulic oil tank (L)146 Main body size Total transportation length (mm) : 9450 Total transportation width (mm) : 2990 Total transportation height (mm) : 2980 Vehicle width (mm) : 2710 The total length of the track (mm) is 4450 The width of the track plate (mm) is 600/700/800 Minimum ground clearance (mm)450 The ground clearance of counterweights (mm) is 1060 The rear end rotation radius (mm) is 2750 Scope of work The maximum excavation radius (mm) is 9000 The maximum excavation radius (mm) of the shutdown surface is 5270 Maximum excavation depth (mm) : 6700 Maximum excavation height (mm) : 9720 The maximum vertical excavation depth (mm) is 6100 The maximum effective excavation depth (mm) is 6520
