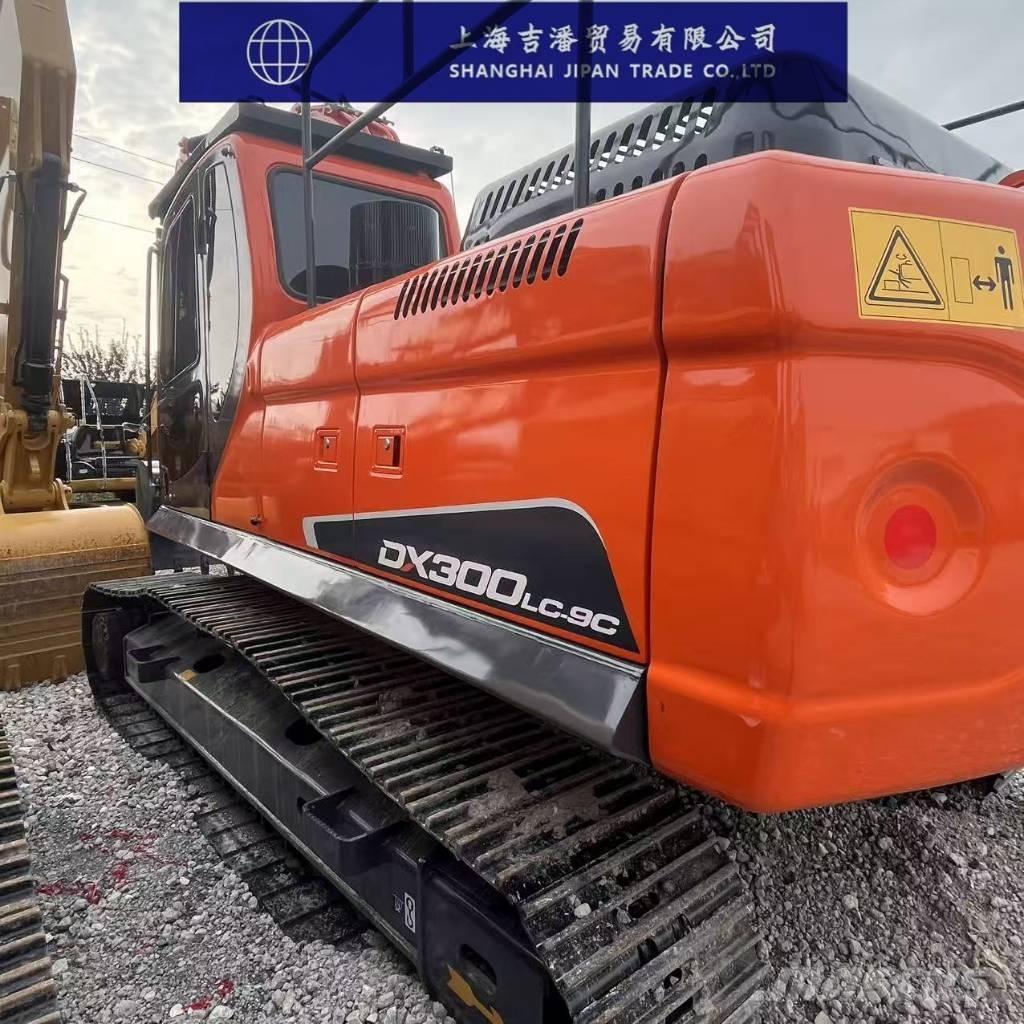

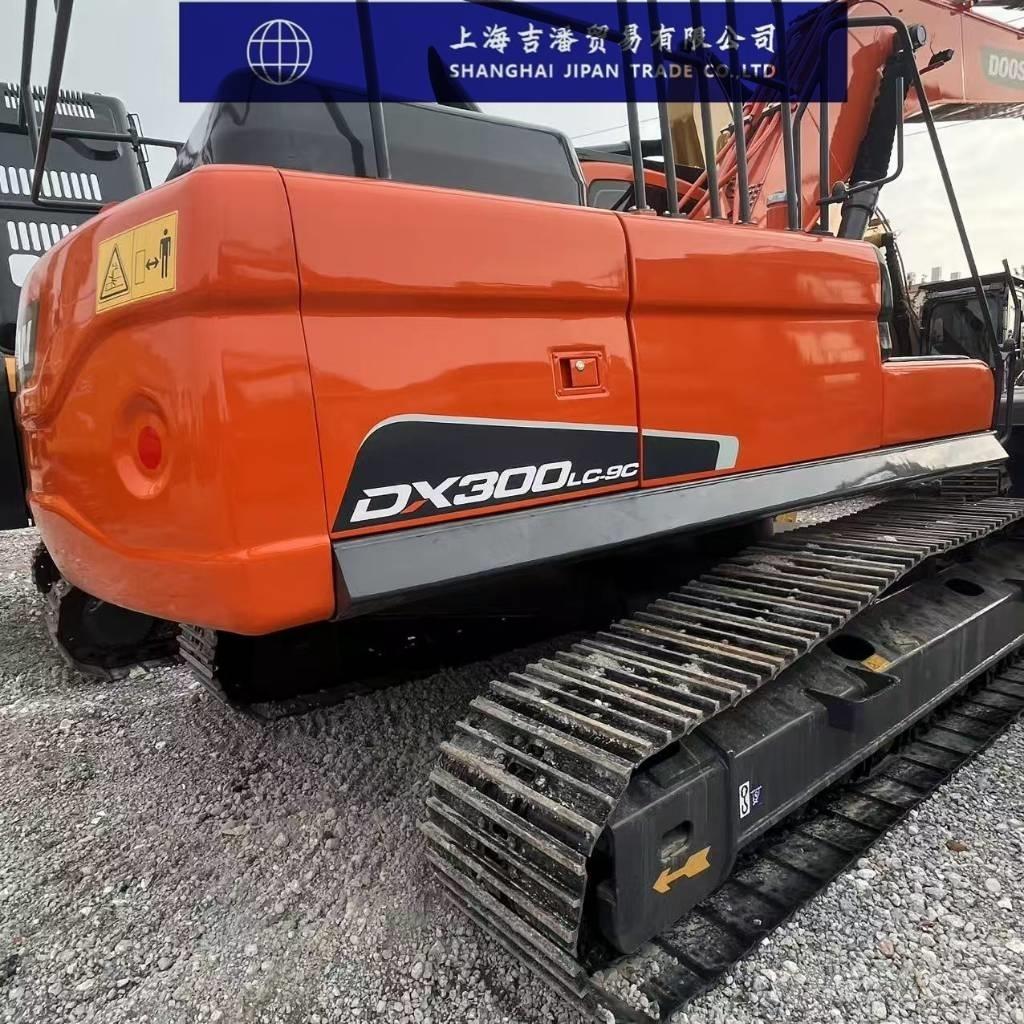

Doosan DX 300 LC

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Diwanlun DX300LC excavator parameter configuration specification The working weight of the whole machine (kg) is 29300 Bucket capacity (m³) 1.27 Boom length (mm) 6245 Stick length (mm) 3100/2500/3750 Place of origin: Yantai, China Tonnage (tons) 30 Power: Traditional power Bucket backhoe Joint ventures/imports Power: Traditional power performance Rotation speed (rpm) 9.9 Rotational torque (Nm) 92 Travel speed (km/h) 5.1 / 3.0 Grounding specific pressure (Kpa) 55 Bucket digging force (kN) 188.3/200.0 Stick digging force (kN) 127.5 / 135.3 dynamical system Engine model DE08TIS Rated power (kw/rpm) 151 (200) / 1900 Displacement (L) 8.07 Number of cylinders (pcs) 6 Bore × stroke (mm) 111×139 Working form 4-stroke, water-cooled, direct injection Hydraulic system Main pump type variable piston pump Main overflow set pressure (Mpa) standard 32.4/boost 34.3 The maximum flow rate of the main pump (l/min) is 2×247 Walking Hydraulic Circuit (Mpa) 32.4 Slewing hydraulic circuit (Mpa) 27 Pilot pump flow rate (L/min) 28. 5 Whether the hydraulic crushing pipeline is standard or not Oil capacity Fuel tank (L) 500 Hydraulic Tank (L) 280 Body size Total length of transport (mm) 10620 Total Transport Width (mm) 3200 Overall transport height (mm) 3250 (to the top of the boom) Cab total height (mm) 3065 Boarding width (mm) 2960 Counterweight ground clearance (mm) 1175 Track grounding length (mm) 4010 Total track length (mm) 4930 Track shoe width (mm) 600 Total track width (mm) 3200 Track gauge (mm) 2600 Minimum ground clearance (mm) 500 Rear end turning radius (mm) 3200 Scope of work Maximum digging radius (mm) 10745 Maximum digging depth (mm) 7365 Maximum digging height (mm) 10330 Maximum unloading height (mm) 7260 Maximum vertical digging depth (mm) 6180 Maximum effective digging depth (mm) 7180/6615/7895
