INFO

Linha de produto
Equipamento de aquecimento e descongelamento
Marca / modelo
Baker
Condição
Equipamento usado
Localização da máquina
Langley, British Columbia
País
Canada
Mascus ID
B2D706D2

PREÇO

Escolha a moeda

DETALHES

N°. de ref. de armazém
133615
Outras informaçőes

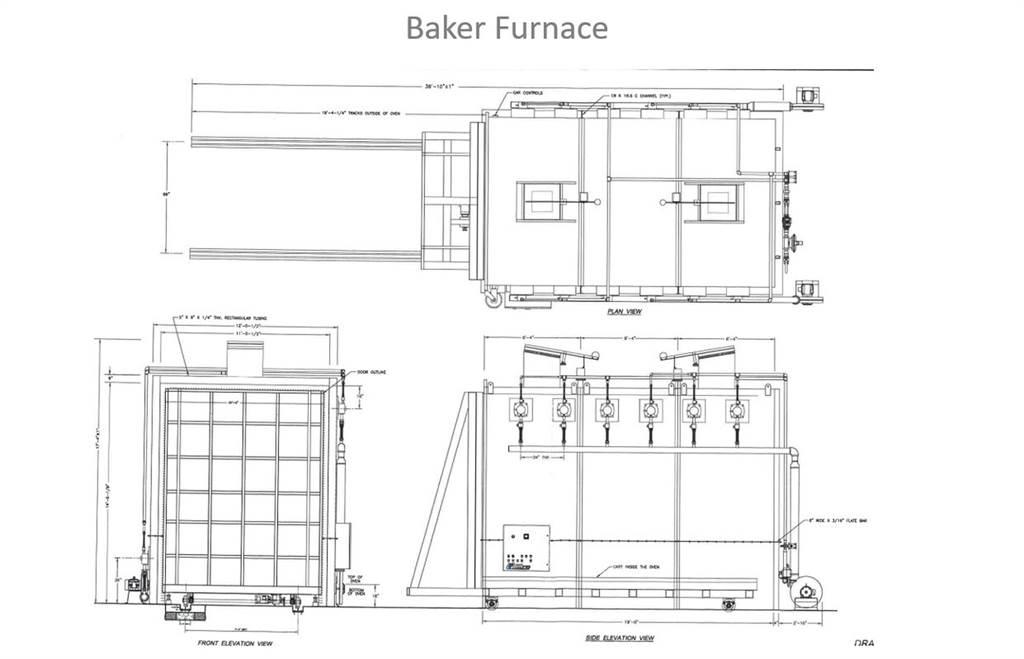

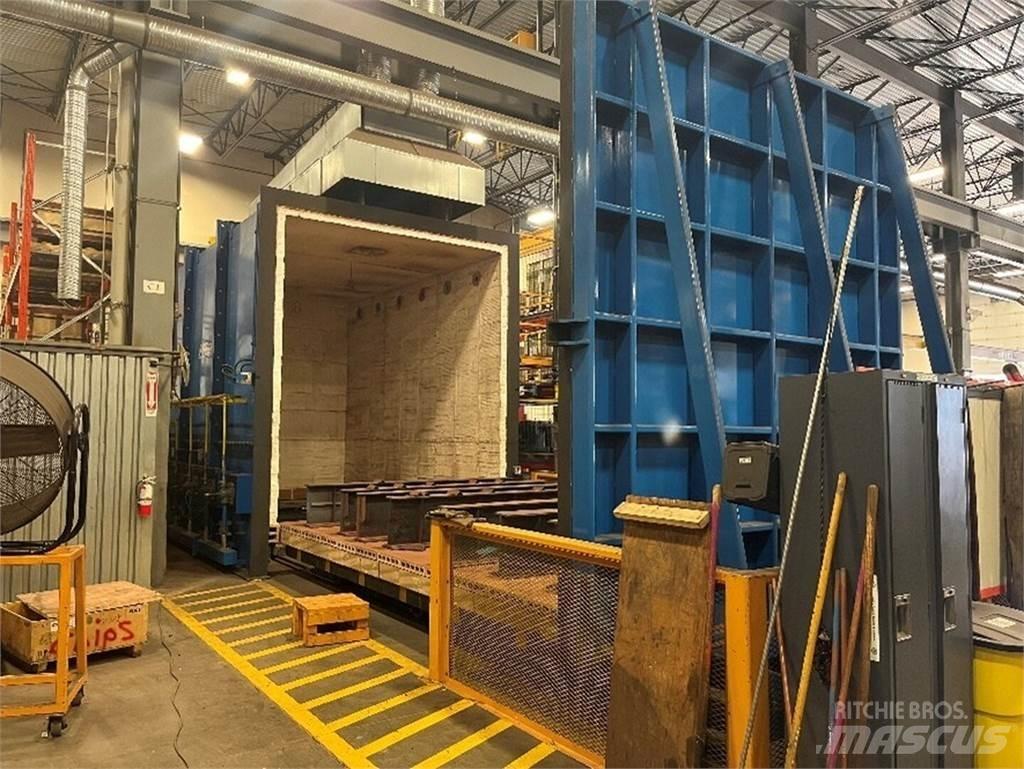

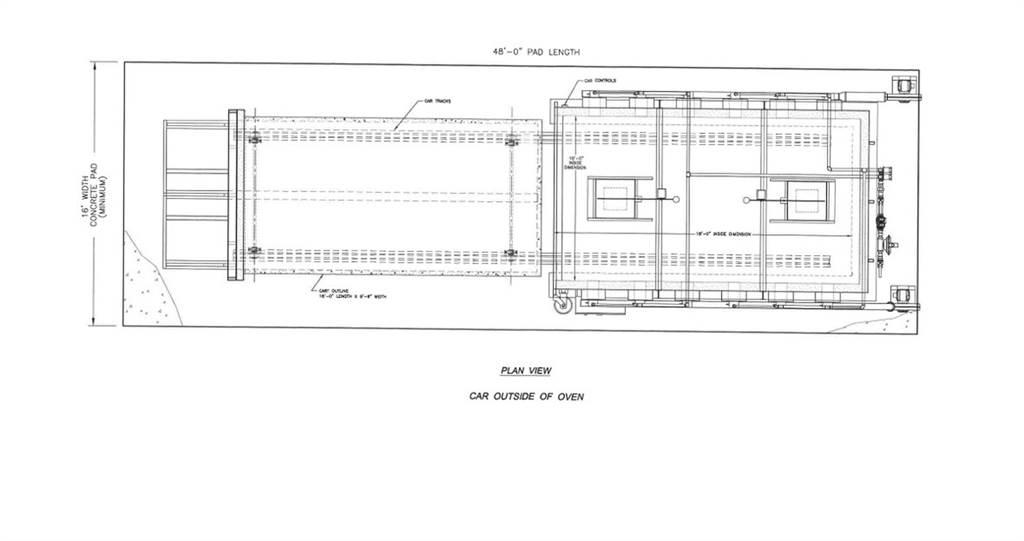

1300 F degree Furnace / Stress Relieve Oven w/ Maxon Kinemax Burners Title: 1300 F degree Furnace / Stress Relieve Oven w/ Maxon Kinemax Burners SKU: 133615 Condition: Used Dimensions: 200.00 (H) x 180.00 (W) x 280.00 (L) inches [Drawings PDF](... (Sketches) PDF](... temperature: Up to 1300 degrees F Operating temperature: 1150 degrees F Interior dimensions: 10' wide x 12' high x 18' long Exterior dimensions: 15' wide x 17 high x 22' long Distance required for furnace and car bottom travel: Allow 40 ft total length Door: Door located on the back of car bottom Refractory lining: 6'' thick 2300F Ceramic Fiber Car bottom floor: 9'' thick (6'' castable with 3'' hard brick) Furnace steel construction: 1/4 hot rolled steel plate Control system (dual zone): West ramp soak controller Nema 4 panel Chart recorder: Yokogawa 6 Channel Paperless Recorder Burners (12): Maxon Kinemax, 500,000 btu/hr each natural gas required: 6000 SCFH Maximum (6mm Btu/hr) Electrical service: 575V, 3, 60amp service Furnace uniformity: Plus or Minus 25 degrees F Thermocouples: Type K in inconel sheath Estimated shipping weight: 50,000lbsMostrar mais

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Canada
