Putzmeister M56-5

Preço

Images39Videos1
Putzmeister M56-5 Bombas de betonagem
Putzmeister M56-5 Bombas de betonagem
FavoriteFavorito
sharePartilhar
Save searchGuardar pesquisa
Imprimir

INFO

Linha de produto
Bombas de betonagem
Marca / modelo
Putzmeister M56-5
Ano
2017
Horas de utilização
3.000 h
Condição
Recondicionado,Remanufactured
País
China
Grau geral
1
2
3
4
5
Mascus ID
379C7292

PREÇO

Escolha a moeda

DETALHES

N°. de ref. de armazém
AICPT028
Número de secções lanças
5
Última inspeção
2024-09-26
Peso bruto
32.000 kg
Boom length
300 cm
Máx alcance horizontal
4.990 cm
Alcance vertical máximo
5.510 cm
Tipo de movimento
Estático
Tipo de potência da bomba
Diesel
Potência da bomba
300 kW
Dimensőes em transporte (CxLxA)
14100 x 2500 x 4000 mm
Classe de emissăo
Stage V
Fabricante do Motor
Ergonic3. EU Version
Tipo de Bomba
Piston
Fabricante do chassi
Mercedes Benz
Marca do pneu
Mercedes Benz
País de fabrico
China
Condições de entrega
FOB, CIF
Certificados
EPA, CE, TÜV
Implementos
Technical Details General Information Arms 5 Folding Type RZ-Folding Vertical Reach 55.1 m Horizontal Reach gross 49.9 m Horizontal Reach net 45.6 m Reach Depth 40.3 m Unfolding Height 15.6 m Slewing Range 365 degree End Hose - Length 3 m Delivery Line (DN, Pressure) DN125/5.5 / 85 mm/bar Support width Standard (front-rear) 9.0 / 12.4 m Support width OSS (front-rear) 5.9 / 8.1 m Support width iSC (front/rear) 2.6-9 / 3-12.4 m Length x Width x Height 14.1 x 2.5 x 4 mm Configuration Concrete Pump .19 iLS Concrete Pump .17 iLS Concrete Pump .16 H LS Concrete Pump .16 H Delivery Cylinder Diameter - Stroke Length 250/2100 mm Output (piston side) 190 m³/hr Delivery Pressure (piston side) 85 bar Strokes (piston side) 30
Outras informaçőes

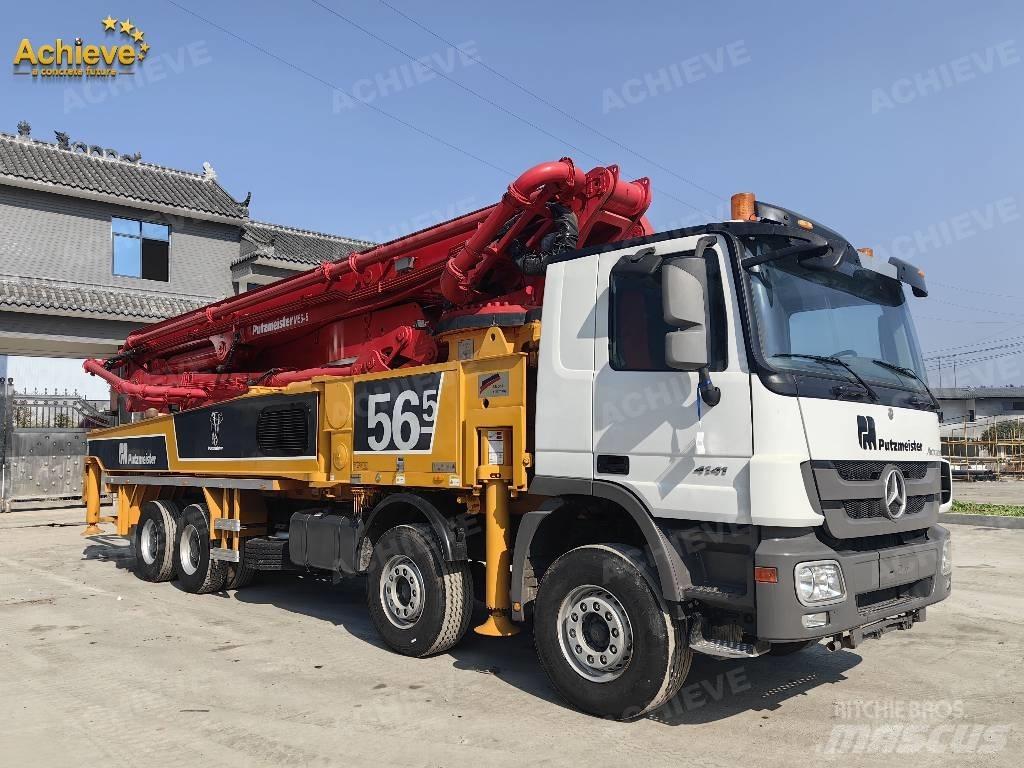

The Putzmeister M56-5 truck-mounted concrete pump is ideal for industrial or high-rise building projects which require large radius of distribution and high performance. The M56-5 is compact, reliable, easily manageable, and economical. As an option this truck-mounted concrete pump can be mounted on a 4 axle (for countries outside of Europe) or 5 axle chassis of various manufacturers. The new fully flexible outrigger gives you all the freedom you need when space on the construction site is tight again. Key Features Longlife design for tough jobs - industry leader with light steel design Maximum safety through closer consideration for current standards and guidelines Service-friendly as a result of its optimised accessibility and consistent bolted concept Minimal service costs thanks to maintenance-free components Longest steel boom on 4 axlesMostrar mais

Achieve Innovations

5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 China
