Putzmeister M49-5

Preço

Images35Videos1

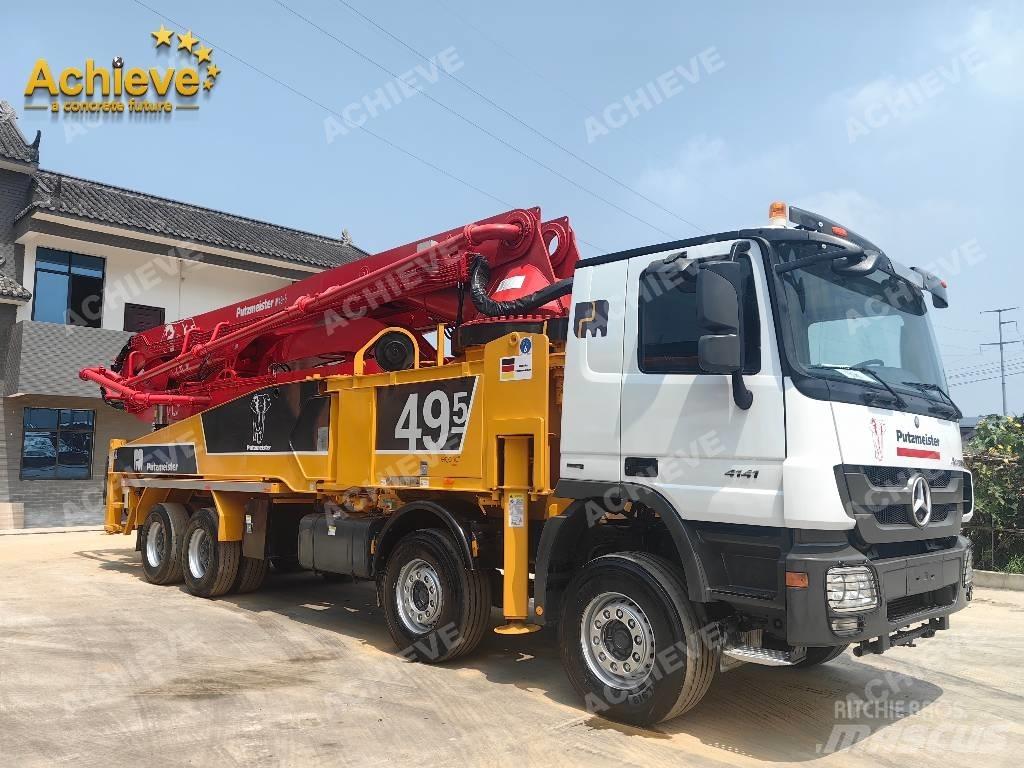

Putzmeister M49-5 Bombas de betonagem
Putzmeister M49-5 Bombas de betonagem
FavoriteFavorito
sharePartilhar
Save searchGuardar pesquisa
Imprimir

INFO

Linha de produto
Bombas de betonagem
Marca / modelo
Putzmeister M49-5
Ano
2013
Horas de utilização
3.000 h
Condição
Recondicionado,Remanufactured
País
China
Grau geral
1
2
3
4
5
Mascus ID
8A178F24

PREÇO

Escolha a moeda

DETALHES

N°. de ref. de armazém
AICPT026
Número de secções lanças
5
Última inspeção
2024-09-26
Peso bruto
32.000 kg
Boom length
400 cm
Máx alcance horizontal
3.730 cm
Alcance vertical máximo
4.160 cm
Tipo de movimento
Estático
Tipo de potência da bomba
Diesel
Potência da bomba
300 kW
Dimensőes em transporte (CxLxA)
11500 x 2500 x 4200 mm
Classe de emissăo
Stage V
Fabricante do Motor
Mercedes Benz OM501LA.III/17
Tipo de Bomba
Piston
Fabricante do chassi
Mercedes Benz
Marca do pneu
Mercedes Benz
País de fabrico
China
Condições de entrega
FOB, CIF
Certificados
EPA, CE, TÜV
Implementos
Boom M 42-5 Sections 5 Reach height m 41.6 Horizontal reach gross m 37.3 net m 34.5 Reach depth max. m 31.0 Unfolding height m 8.6 End hose length m 4 Folding system RZ Delivery line DN 125 Pump BSF .16 H .17 i LS Rod side Output m³/h 160 - Delivery pressure bar 85 - Strokes 1/min. 31 - Piston side Output m³/h 108 170 Delivery pressure bar 130 85 Strokes 1/min. 21 27 Delivery cylinder Ø mm 230 250 Stroke mm 2100 2100
Outras informaçőes
Truck-mounted concrete pump 49-5 Efficiency and flexibility on 4 axles Get ahead with 5 arms 49-5, this means a 49 m vertical reach distributed over 5 arms with a compact design in roll Z-folding system. 5 arms, this means a high degree of versatility. Optimized kinematics also ensures that there is no noticeable dead space. A placing boom in roll Z-folding system combines a compact design with a low unfolding height, optimum slip characteristics and the best use of the horizontal reach from the front edge of the truck. This means that you benefit from the advantages of the roll and of the Z-folding system in an economic way. Get closer to the action with less space requirement Set-up times can be kept as short as possible. With the TRDI support developed by Putzmeister, you save time and space, without compromising on safety. Double telescoping support legs can also be securely placed in minimal spaces between obstacles. Thanks to the optional One Side SupportMostrar mais

Achieve Innovations

5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 China
