Putzmeister M46-5

Preço

Images58Videos1

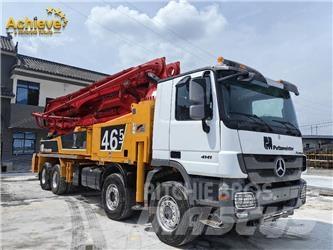

Putzmeister M46-5 Bombas de betonagem
Putzmeister M46-5 Bombas de betonagem
FavoriteFavorito
sharePartilhar
Save searchGuardar pesquisa
Imprimir

INFO

Linha de produto
Bombas de betonagem
Marca / modelo
Putzmeister M46-5
Ano
2013
Horas de utilização
3.000 h
Condição
Recondicionado,Remanufactured
País
China
Grau geral
1
2
3
4
5
Mascus ID
FF862F64

PREÇO

Escolha a moeda

DETALHES

N°. de ref. de armazém
AICPT016
Número de secções lanças
5
Última inspeção
2024-09-26
Peso bruto
32.000 kg
Boom length
300 cm
Máx alcance horizontal
4.110 cm
Alcance vertical máximo
4.610 cm
Tipo de movimento
Estático
Tipo de potência da bomba
Diesel
Potência da bomba
300 kW
Dimensőes em transporte (CxLxA)
11850 x 2500 x 4000 mm
Classe de emissăo
Stage V
Fabricante do Motor
Ergonic3. EU Version
Tipo de Bomba
Piston
Fabricante do chassi
Mercedes Benz
Marca do pneu
Mercedes Benz
Condições de entrega
FOB, CIF
Certificados
EPA, CE, TÜV
Implementos
Technical Details General Information Arms 5 Folding Type RZ-Folding Vertical Reach 46.1 m Horizontal Reach gross 41.1 m Horizontal Reach net 38 m Reach Depth 32.4 m Unfolding Height 11.1 m Slewing Range 365 degree End Hose - Length 3 m Delivery Line (DN, Pressure) DN125/5.5 / mm/bar Support width Standard (front-rear) 8.4 / 9.3 m Support width OSS (front-rear) 5.6 / 6.9 m Support width iSC (front/rear) 2.6-8.4 m Length x Width x Height 11.85 x 2.5 x 4 mm Total Weight (approx.) under 32000 kg Configuration Concrete Pump .19 iLS Concrete Pump .17 iLS Concrete Pump .16 H LS Concrete Pump .16 H Delivery Cylinder Diameter - Stroke Length 250/2100 mm Output (piston side) 190 m³/hr Delivery Pressure (piston side) 85 bar Strokes (piston side) 30
Outras informaçőes
If you are looking for a lightweight, high performance machine on 4 axles — the truck-mounted concrete pump M47-5 is built for you. Weighing less than 32 t, the 47-5 is one of the lightest in its class and provides a more than sufficient payload reserve. It is ideal for application at medium to large sized sites as well as job sites that offer challenging setup situations. Different small support Options available: Europe: ISC with permanent check of permitted arm positions and working ranges Outside Europe: OSS (One Side Support) The new fully flexible outrigger together with the intuitive Ergonic 3.0 control gives you all the freedom you need when space on the construction site is tight again. Key Features Below 32 t total weight Smooth 5-section-boom with Roll Z-Folding TRDI-Support for compact support area, fast setting up, relieved framework and difficult setup situations (iSC and OSS, One Side Support optional) Efficient work with Ergonic 3.0 operating system ReducMostrar mais

Achieve Innovations

5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 China
